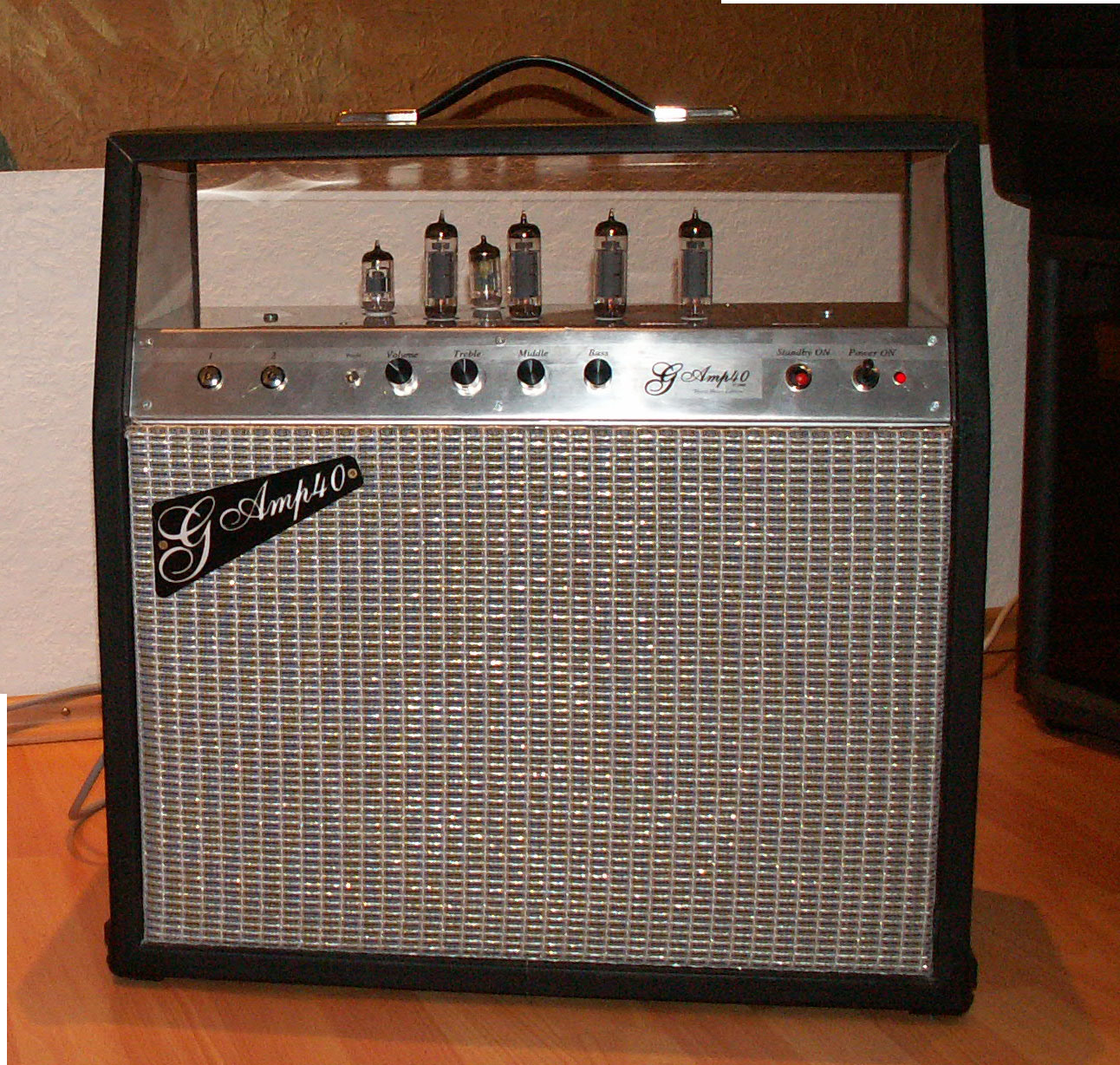

G-Amp40-112

Amplifier Type

Combo

Model Name

G-Amp40-112

Introduction

August 2004

Amp Series

Vintage Style linear All-Tube-Push-Pull Amplifier

Output Power

40 Watt into 8 Ohms

Speaker

1  12” Jensen C12N, 8 Ohm, 50 W ceramic Magnet

Channels

Dual normal clean Input

Controls

Bright Switch, Volume, Treble, Middle, Bass, Standby Switch, Power ON Switch, Power ON LED

Features

Effect loop Send, Effect Loop Return

Speaker Output

4/8 Ohm speaker output for external speakers ( internal speaker via plug removable )

Tubes

4x EL84 JJ, 1x ECC81 JJ, 1x ECC83S JJ

Power Supply

Solid State Rectifier with excellent hum and noise suppression , 115/230VAC @1.6/0.8A

Hum+ Noise

- 75 dBm

Amplifier Unit

Aluminium Amplifier Chassis with integrated Toroid Power and Output transformers

Technology

Engineered and designed by use of CAD and computer simulation for optimum sound performance and EMC aspects

Sound

sweet brilliant clear to warm bluesy tone, huge dynamic range and tone variation through tone stack setting

Housing

18 mm plywood birch cabinet with stiff joints, low self resonance

Covering

Black textured vinyl with silver grille cloth, corner protectors and hand strap

Dimensions

Height 540 mm, Width 540 mm, Depth 250 mm

Weight

16 kg

Production

manufactured in amp custom shop by Gig-Sound-Systems, Berlin Germany
